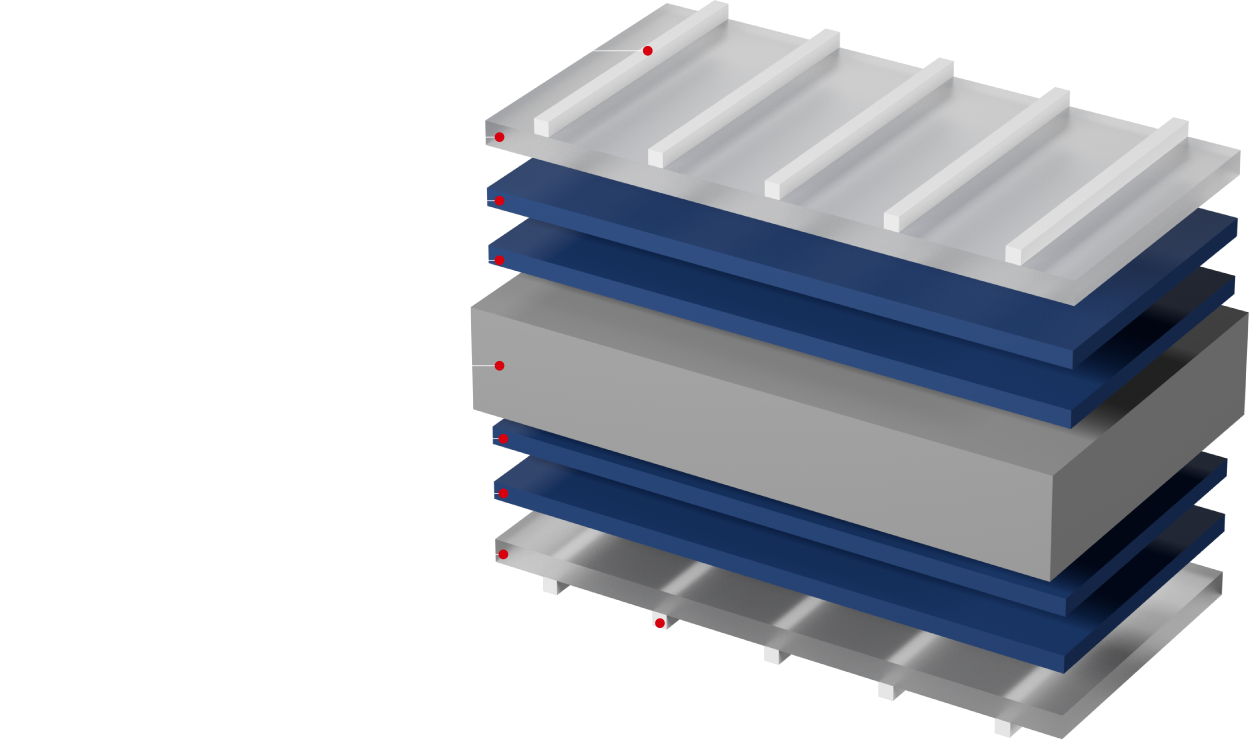

Cell internal structure
A heterojunction is an interfacial region formed by two different types of semiconductors coming into contact with each other, known as an intrinsic thin film HJT cell, and possessing a two-sided cell structure.
HJT cells offer breakthrough improvements in efficiency and performance compared to traditional PERC technology. In addition, compared to other solar cell technologies, Jetion solar’s HJT cell manufacturing requires only four low-temperature process steps, resulting in higher production efficiency and lower losses.
  • Texturing
  • A-si Front &
    Rear side deposition
  • TCO Front &
    Rear side deposition
  • Metallization
  • 11.25 W
    Maximum power
    for mass production
  • 26.7 %
    Maximum efficiency
    for mass production
  • -0.26 %/℃
    Leading temperature
    coefficient
  • 110
    Ultra-thin wafer
    thickness
HJT Cell Characteristics
  • Wafer: N-type wafer

  • Thickness: 110±20㎛

  • Dimension: 210 x 105±0.35mm

  • Busbars: 0BB/20BB

Product specification
Jeniüs N-HJT
Outdoor Performance
